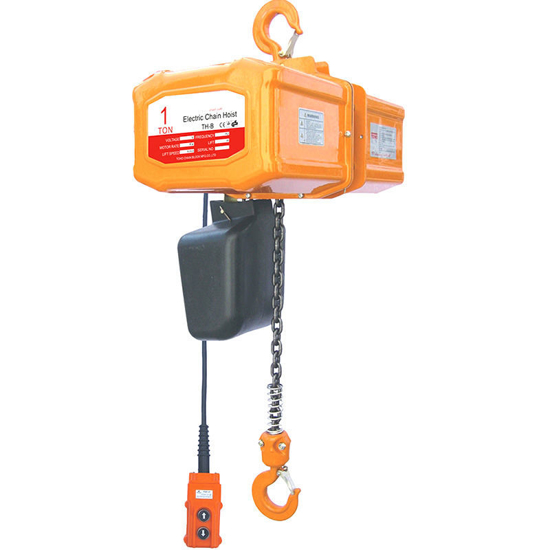

Toho Electric Chain Hoists Three Phase 1 Tonne 3M Lift

Toho Electric Chain Hoist with 1000kg capacity and 3m lift in 3 Phase. Load Limited, Thermal overload prevention, Lightweight, compact design with high efficiency motor, Pressed steel structure, high strength body, High tensile alloy steel top & bottom hooks

Part No: EW-TECH-3PH-2SP-0103

Shipping Charges *

$2,410.00 excl GST

Finance available from $18 per week

Based on a 5-year term

Finance powered by Trade Funding Pty Ltd. Business applicants only, subject to credit assessment, lender criteria, fees and terms. Indicative repayments only.

Toho Electric Chain Hoists Three Phase 1 Tonne (1000kg) 3M Lift

Features:

Load Limited
Thermal overload prevention
Lightweight, compact design with high efficiency motor
Pressed steel structure, high strength body
High tensile alloy steel top & bottom hooks
Grade 80 - 7.1mm Alloy Steel load chain
Limit switches fitted at top and bottom ends to prevent chain runout
415V, 50Hz Dual speed Motor 1200 Watts. (3 Phase)
Complies with ASNZS1418.2 standard

Specifications:

Electric Chain Hoist Capacity : 1 tonne (1000kg)
Standard Lift M : 3
Running Test Load : 12.5 kN
Motor Power : 1.2 kW
No. of Chains : 2
Dia of Chains : 7.1 mm
Lifting Speed : 1.2/3.5
Net Weight : 58.3 Kg

Toho Electric Chain Hoists Three Phase 1 Tonne 3M Lift

Toho Electric Chain Hoists Three Phase 1 Tonne (1000kg) 3M Lift
