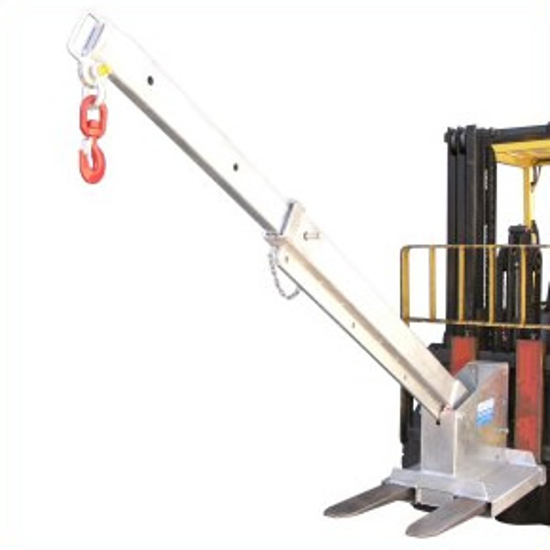

Picture of Tilt Jib Long Jib Attachment 4750Kg SWL
Picture of Tilt Jib Long Jib Attachment 4750Kg SWL
tilt-jib-long-jib-attachment-4750kg-swl
tilt-jib-long-jib-attachment-4750kg-swl

Tilt Jib Long Jib Attachment 4750Kg SWL

The type EW-TJL5 Tilt Jib (Long) with 4750 maximum capacity is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments.
Part No: EW-TJL5-G
*
$4,060.00 excl GST
Finance available from $28 per week
Based on a 5-year term
Finance powered by Trade Funding Pty Ltd. Business applicants only, subject to credit assessment, lender criteria, fees and terms. Indicative repayments only.

The type EW-TJL5 Tilt Jib (Long) with 4750kg max capacity  is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 2.4 metres can be gained while the Jib can be fully extended to 3.59 metres. Simply slide onto the Fork Tines and secure with safety chain.
  • Supplied with safety swivel Hook and Shackle
Products specifications
SWL (kg)4750
Load Centre (mm)1000
Pocket Size (mm)185 x 75
Pocket Centres (mm)370
Overall Length when closed (mtr)2.16
Horizontal Centre of Gravity (mm)985
Vertical Centre of Gravity (mm)275
Unit Weight (Kg)240
