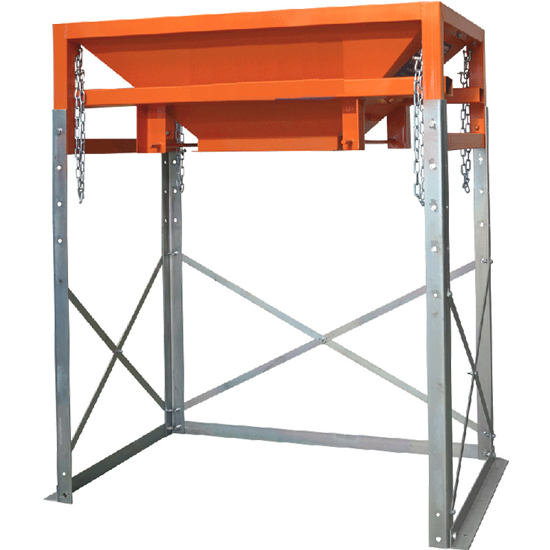

Freestanding Bulk Bag Filling Frame

Freestanding Bulk Bag Filling Frame

This Bulk Bag Filling Frame saves hours of labour and reduces risk of injury. This frame is designed to safely hook open a bulk bag and fill with free-flowing bulk products such as sand and gravel etc, removing the need for the operator to hold the bag open or manually fill themselves.

Features:

• Bulk bag can be held in position by either the bag retaining pin mounts allowing for easy removal by forklift or pallet jack, or the adjustable bag restraining chains allowing bag to be positioned at optimal height
• 3 adjustable height settings allow optimal removal of filled bags to suit your operational requirements
• Fork pockets fitted for easy transport around the worksite
• Optional bulk bag filling clamshell gate (EW-BFU250CS) for maximum material flow and control
• Optional bulk bag filling  spill guard (EW-BFU250SG) - note this does not add capacity to the hopper
• Optional bulk bag filling reducing funnels
• Supplied with 4 safety swivel hooks and retaining pin mounts
• Enamel paint finish

Specification:

• Working Load Limit (WLL) : 1000kg
• Load Centre : 900mm
• Dimensions : 1800 x 1150mm
• Adjustable Height Settings : 3
• Unit Height : 1700 - 2195mm
• Unit Weight : 270kg
• Fork Pocket Size : 140 x 65mm
• Fork Pocket Centres : 850mm

Select optional extras above by selecting check boxes.
