Forklift Grab Attachment with 950mm Load Centre
The GA Grab is designed as a slip on Forklift attachment, and is used to securely transport poles or pipes, with models available to handle from 170mm through to 1200mm diameter.
- *
Finance available from $45 per weekBased on a 5-year term
Finance powered by Trade Funding Pty Ltd. Business applicants only, subject to credit assessment, lender criteria, fees and terms. Indicative repayments only.

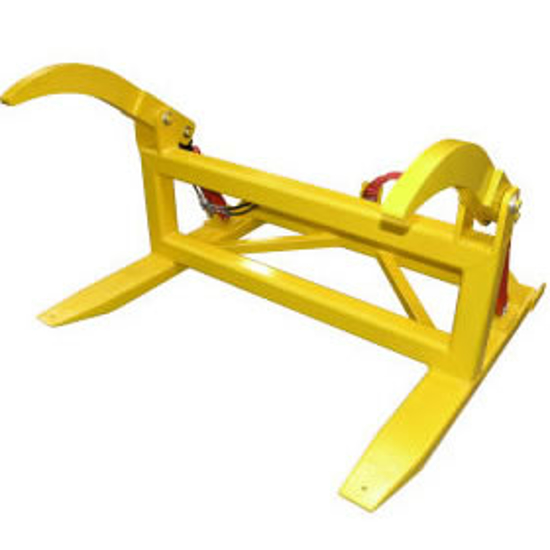

The GA Forklift Grab Attachment is a slip on attachment meaning that it slides straight onto your existing fork lift tynes.
It is designed to grab and securely transport poles or pipes ranging in size from 170mm right through to 1200mm diameter.
The hydraulic grab requires one additional hydraulic power take off on your forklift but comes supplied with connection hoses with quick connect couplings. Painted finish in safety yellow enamel pain.
Products specifications
| Finish | Painted |
| SWL (kg) | 2500 |
| Pocket Size (mm) | 165 x 60 |
| Pocket Centres (mm) | 931 |
| Load Centre (mm) | 950 |
| Minimum Pole Diameter (mm) | 170 |
| Maximum Hydraulic Flow | 900 |
| Horizontal Centre of Gravity (mm) | 420 |
| Vertical Centre of Gravity (mm) | 300 |
| Length (mm) | 1300 |
| Width (mm) | 1112 |
| Height (mm) | 985 |
| Unit Weight (Kg) | 265 |
