  • Electric Narrow Stacker 1000kg 1600mm Lift

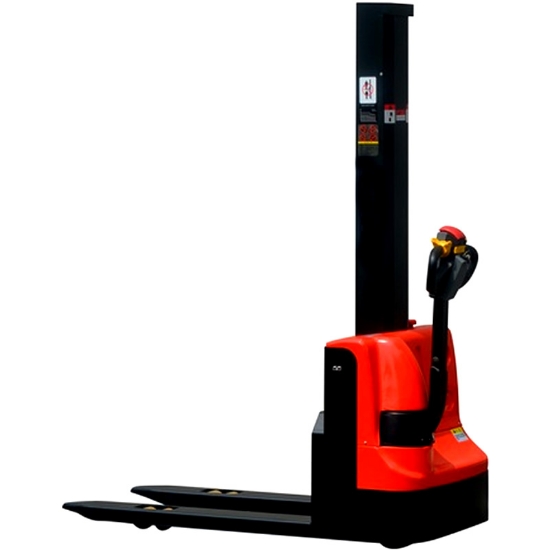

Picture of Electric Narrow Stacker 1000kg 1600mm Lift
Picture of Electric Narrow Stacker 1000kg 1600mm Lift
Picture of Electric Narrow Stacker 1000kg 1600mm Lift
Picture of Electric Narrow Stacker 1000kg 1600mm Lift

Electric Narrow Stacker 1000kg 1600mm Lift

This electric economy stacker offers an attractive appearance, convenient operation and features. With a lifting capacity of 1000kg. The side-driven design effectively reduces the size of the operation channel. With a small turning radius and better view, this stacker is suitable for narrow spaces. Thought it is economical power stacker, it is still equipped with high-power and high- performance lifting pump station, which ensures the goods lifting.
Part No: EW-CL-1016
*
$4,400.00 excl GST
Finance available from $30 per week
Based on a 5-year term
Finance powered by Trade Funding Pty Ltd. Business applicants only, subject to credit assessment, lender criteria, fees and terms. Indicative repayments only.

Electric Narrow Stacker 1000kg 1600mm Lift

This electric economy stacker offers an attractive appearance, convenient operation and features. With a lifting capacity of 1000kg.

Description:

  • The side-driven design effectively reduces the size of the operation channel. With a small turning radius and better view, this stacker is suitable for narrow spaces.
  • Thought it is economical power stacker, it is still equipped with high-power and high- performance lifting pump station, which ensures the goods lifting.
  • The turtle speed switch on the handle makes low-speed control more precise.
  • Germany imported waterproof micro-switches are applied in the cold, damp, dusty and other harsh environments.
  • YONGCI motor drive system is with small size, light weight, low loss and high efficiency.

Specification:

  • Capacity: 1000 kg
  • Load Capacity on Max Height: 800kg
  • Lifting height: 1600 mm
  • Turning Radius: 1316 mm
  • Load Center Distance: 600 mm
  • Fork Length: 1150 mm
  • Fork Outside Width: 570 / 695 mm
  • Single Fork Width: 160 mm
  • Min Fork Height: 86 mm
  • Support Leg Length: 928 mm
  • Support Leg Height: 75 mm
  • Single Support Leg Width: 124 mm
  • Support Leg Inside Width: 410 mm
  • Support Leg Outside Width: 660 mm
  • Overall Length: 1632 mm
  • Overall Width: 795 mm
  • Lifting Motor: 2.2 kw
  • Unit Weight: 410 kg
