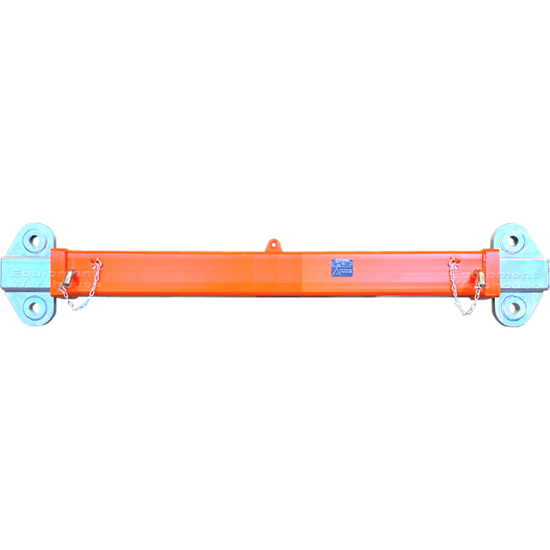

Spreader Beam 40000 Kg Capacity

The EW-CEH-2236 Crane Spreader Beam is designed to end lift long, heavy loads using a 2 leg chain sling as a Spreader Beam by overhead crane.
Part No: EW-CEH-2236
*
$3,650.00 excl GST
Finance available from $25 per week
Based on a 5-year term
Finance powered by Trade Funding Pty Ltd. Business applicants only, subject to credit assessment, lender criteria, fees and terms. Indicative repayments only.

Spreader Beam 40000 Kg Capacity

The EW-CEH-2236 Crane Spreader Beam is designed to end lift long, heavy loads using a 2 leg chain sling as a ‘Spreader Beam’ by overhead crane.

Features:

  • Used to lift long heavy loads up to 40T
  • End lift as a spreader beam via the end hooks and 2 leg chain sling
  • Load connection points are adjustable to 3 positions
  • Safety pins used to securely lock extendable arm in position
  • Centre lifting point provided for moving spreader beam
  • 2 leg chain sling distributes the load weight making it more stable
  • Sling angle can be controlled allowing you to reduce the risk of load damage
  • Third party certified to the relevant Australian Standards
  • Zinc finish on extendable arms, enamel paint finish on main body

Specifications:

Rated Capacity (RC)
Unit Weight
(kg)
When used as
Fully Retracted
(LC@2210mm)
Middle Position
(LC@2970mm)
Fully Extended
(LC@3730mm)
Length
2500mm
3195mm
3890mm
364
Lifting Beam
40,000kg
40,000kg
40,000kg
