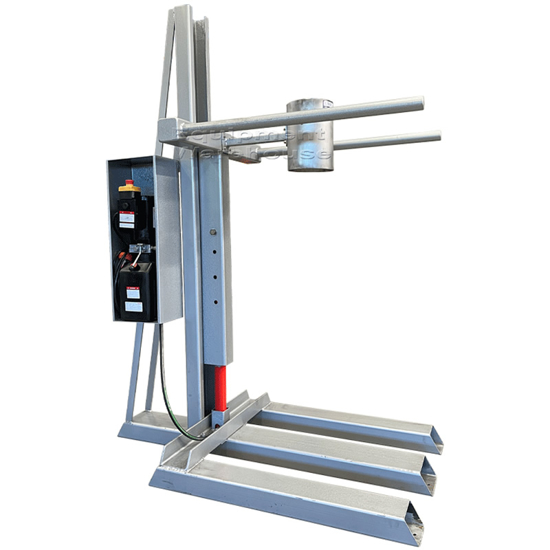

Bulk Bag Filling Station

This Bulk Bag Filling Station is designed to allow filling of bulk bags, totes and open-top bags with dry, free-flowing materials, removing the need for the operator to hold the bag open or manually fill themselves. The simple design can be used as a stand alone solution or integrated into existing process lines.

Part No: EW-BBFS

Shipping Charges *

$8,380.00 excl GST

Finance available from $54 per week

Based on a 5-year term

Finance powered by Trade Funding Pty Ltd. Business applicants only, subject to credit assessment, lender criteria, fees and terms. Indicative repayments only.

Qty:

Bulk Bag Filling Station

This Bulk Bag Filling Station is designed to allow filling of bulk bags, totes and open-top bags with dry, free-flowing materials, removing the need for the operator to hold the bag open or manually fill themselves. The simple design can be used as a stand alone solution or integrated into existing process lines.

Features:

Allows filling of bulk bags, totes and open-top bags
Suits free-flowing materials such as plastic granules, grain, fertilizer and sand
Adjustable for a variety of bag heights
Hydraulic operated lift allows raising and lowering of bag whilst filling or full
Bulk bag lifting straps simply slide onto prong for ease of loading
Std filling head included or can be customised to suit application on request
Safe removal of full bags by forklift or pallet jack
Operator can disengage the bulk bag without leaving their seat
Fork pockets provided for transport purposes only
Enamel paint finish

Specifications:

Working Load Limit (WLL) : 1000kg
Dimensions : 970(w) x 1700(d) x 2260(h) mm
Adjustment Range : 1260 - 2130mm
Power Supply : 240V
Unit Weight : 240kg
Fork Pocket Size : 185 x 85mm
Fork Pocket Centres : 820mm
